The 2N5002 is a silicon NPN transistor.
Parametrics
2N5002 absolute maximum ratings: (1)Collector-Emitter Voltage:80Volts ; (2)Collector-Base Voltage:100Volts ; (3)Emitter-Base Voltage:5.5Volts ; (4)Collector Current, Continuous:5 A ; (5)Power Dissipation, TA = 25℃:2W; (6)Derate linearly above 25℃:11.4mW/℃; (7)Power Dissipation, TC = 25℃:58W; (8)Derate linearly above 25℃:331mW/℃; (9)Operating Junction Temperature:-65℃ to +200℃; (10)Storage Temperature:-65℃ to +200℃.
Features

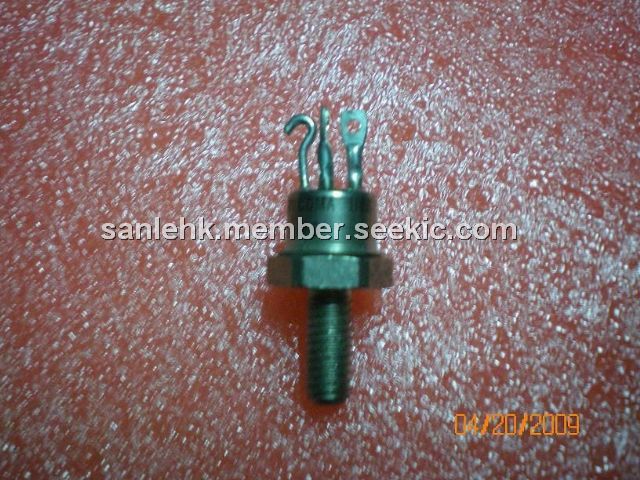

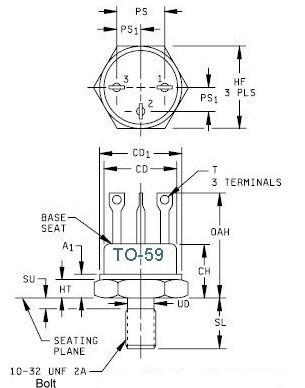

2N5002 features: (1)Hermetically sealed TO-59 metal can ; (2)Also available in chip configuration ; (3)Chip geometry 9202 ; (4)Reference document: MIL-PRF-19500/534 .
