Product Summary

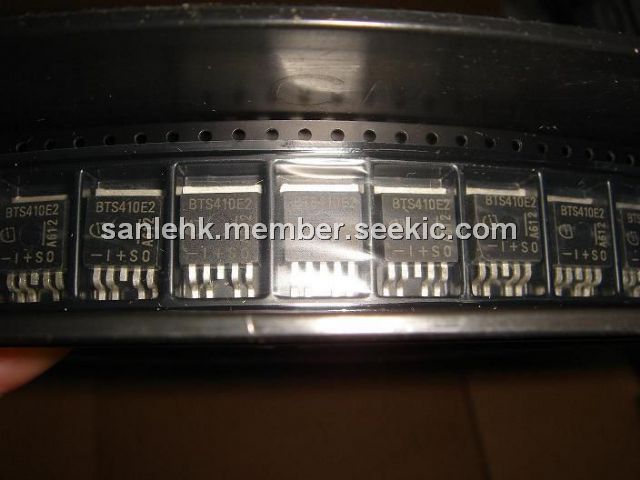

The BTS410E2 is a Smart Highside Power Switch.
Parametrics
BTS410E2 absolute maximum ratings: (1)Supply voltage:65V; (2)Load dump protection:100V; (3)Operating temperature range:-40℃ to +150℃; (4)Storage temperature range:-55℃ to +150℃; (5)Power dissipation:50 W; (6)Inductive load switch-off energy dissipation, single pulse:4.5J; (7)Input voltage (DC):-0.5V to +6V; (8)Current through input pin (DC): ±5.0mA; (9)Current through status pin (DC):±5.0mA.
Features
BTS410E2 features: (1)Overload protection ; (2)Current limitation ; (3)Short circuit protection ; (4)Thermal shutdown ; (5)Overvoltage protection (including load dump) ; (6)Fast demagnetization of inductive loads ; (7)Reverse battery protection1) ; (8)Undervoltage and overvoltage shutdown with auto-restart and hysteresis ; (9)Open drain diagnostic output ; (10)Open load detection in ON-state ; (11)CMOS compatible input ; (12)Loss of ground and loss of Vbb protection ; (13)Electrostatic discharge (ESD) protection.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BTS410E2 |
Infineon Technologies |
Power Switch ICs - Power Distribution PROFET SMART HI SIDE PWR SW |
Data Sheet |
|
|
|||||||||||||
BTS410E2 E3043 |
Infineon Technologies |
Power Switch ICs - Power Distribution PROFET SMART HI SIDE PWR SW |
Data Sheet |
|
|
|||||||||||||
BTS410E2 E3062A |
Infineon Technologies |
Power Switch ICs - Power Distribution PROFET SMART HI SIDE PWR SW |
Data Sheet |
|
|
