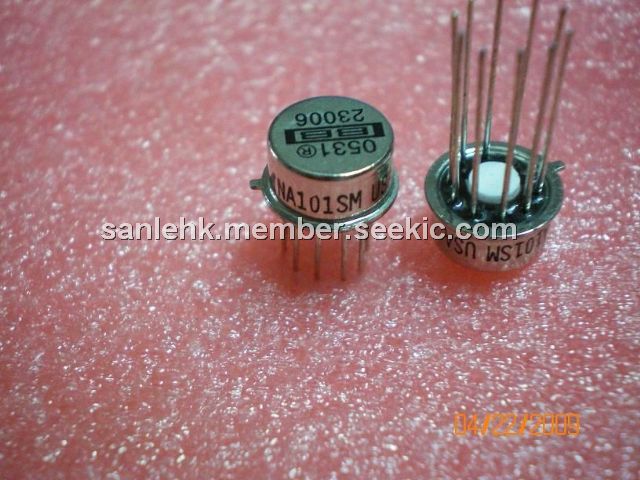

Product Summary

The INA101SM is a high accuracy instrumentation amplifier designed for low-level signal amplification and general purpose data acquisition. Three precision op amps and laser-trimmed metal film resistors are integrated on a single monolithic integrated circuit.

Parametrics

INA101SM absolute maximum ratings: (1)Supply Voltage: ±20V; (2)Power Dissipation: 600mW; (3)Input Voltage Range: ±VCC.

Features

INA101SM features: (1)LOW DRIFT: 0.25μV/℃ max; (2)LOW OFFSET VOLTAGE: 25μV max; (3)LOW NONLINEARITY: 0.002%; (4)IGH CMR: 106dB AT 60Hz; (5)HIGH INPUT IMPEDANCE: 1010W; (6)14-PIN PLASTIC, CERAMIC DIP, SOL-16, AND TO-100 packages.

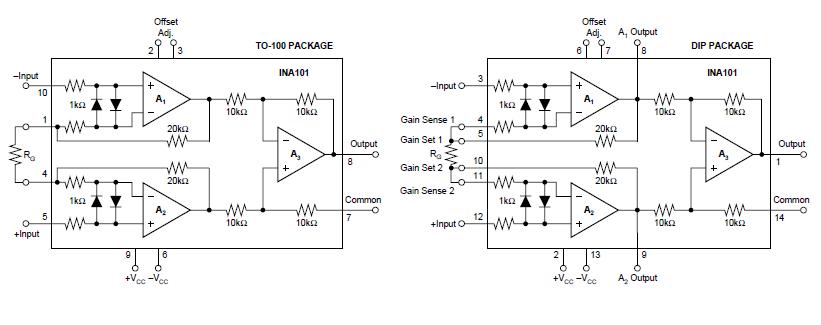

Diagrams
