Product Summary

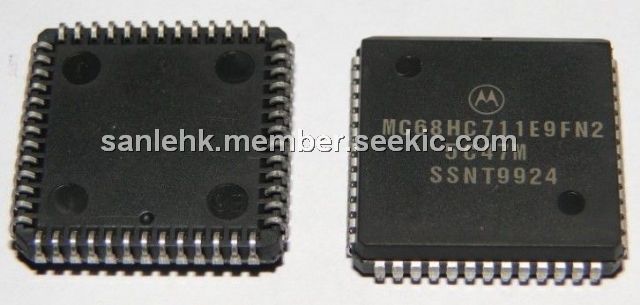

The MC68HC711E9FN2 is an 8-bit microcontroller unit.
Parametrics
MC68HC711E9FN2 absolute maximum ratings: (1)Supply voltage, VDD: –0.3 to +7.0 V; (2)Input voltage, VIn: –0.3 to +7.0 V; (3)Current drain per pin excluding VDD, VSS, AVDD, VRH, VRL, and XIRQ/VPPE, ID: 25 mA; (4)Storage temperature, TSTG: –55 to +150℃.
Features
MC68HC711E9FN2 features: (1)M68HC11 CPU; (2)Power-saving stop and wait modes; (3)Low-voltage devices available (3.0–5.5 Vdc); (4)0, 256, 512, or 768 bytes of on-chip RAM, data retained during standby; (5)0, 12, or 20 Kbytes of on-chip ROM or EPROM; (6)0, 512, or 2048 bytes of on-chip EEPROM with block protect for security; (7)2048 bytes of EEPROM with selectable base address in the MC68HC811E2; (8)Asynchronous non-return-to-zero (NRZ) serial communications interface (SCI); (9)Additional baud rates available on MC68HC(7)11E20; (10)Synchronous serial peripheral interface (SPI); (11)8-channel, 8-bit analog-to-digital (A/D) converter; (12)16-bit timer system: Three input capture (IC) channels; Four output compare (OC) channels; One additional channel, selectable as fourth IC or fifth OC; (13)8-bit pulse accumulator; (14)Real-time interrupt circuit; (15)Computer operating properly (COP) watchdog system; (16)38 general-purpose input/output (I/O) pins: 16 bidirectional I/O pins; 11 input-only pins; 11 output-only pins.

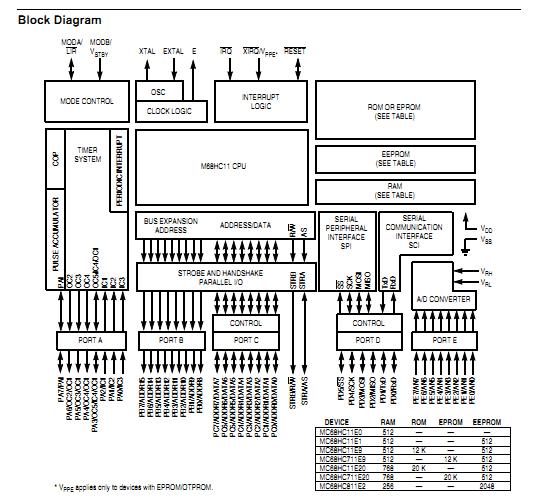

Diagrams
 |
