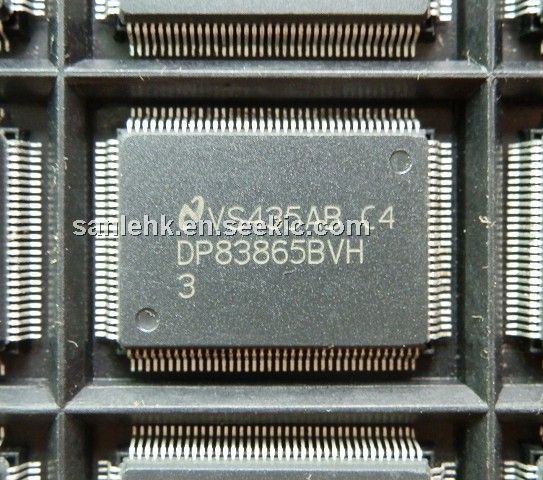

DP83865BVH

Layer transceiver, PQFP, 128-pin

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.00~6.00

PartNumber:: DP83865BVH

Brand:: National Semiconductor - NS | Pack: SMD | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lilychen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-06-20

From Other Seller

Part Number:DP83865BVH
US $5.00 - 6.00
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
LA76810A

US $0.90 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The DP83865BVH is a fully featured Physical Layer transceiver with integrated PMD sublayers to support 10BASE-T, 100BASE-TX and 1000BASE-T Ethernet protocols.

Parametrics

DP83865BVH absolute maximum ratings: (1)Supply Voltage IO_VDD: -0.4V to 4.2 V; (2)Supply Voltage CORE_VDD, 1V8_AVDD1, 1V8_AVDD2: -0.4V to 2.4V; (3)Supply Voltage 2V5_AVDD1, 2V5_AVDD2: -0.4V to 3.6V; (4)Input Voltage (DCIN): -0.5V to IO_VDD + 0.5V; (5)Output Voltage (DCOUT): -0.5V to IO_VDD + 0.5V; (6)Storage Temperature: -65 to 150℃; (7)ESD Protection: 6000V.

Features

DP83865BVH features: (1)Fully compliant with IEEE 10BASE-T, 100BASE-TX and; (2)1000BASE-T specifications (802.3u, 802.3z, 802.3ab); (3)Integrated PMD sublayer featuring adaptive equalization and baseline wander compensation according to ANSI X3.T12; (4)3.3 V or 2.5 V MAC interfaces; (5)User programmable GMII pin ordering; (6)LED support for activity, full / half duplex, link1000, link100 and link10 or user programmable (manual on/off) Supports 25 MHz operation with crystal or oscillator; (7)Requires only two power supplies, 1.8 V (core and analog) and 2.5 V (analog and I/O). 3.3V is supported as an alternative supply for I/O voltage; (8)User programmable interrupt; (9)Supports Auto-MDIX at 10, 100 and 1000 Mb/s; (10)Supports JTAG (IEEE1149.1); (11)Ultra low power consumption of one watt typical; (12)Management port (MDC / MDIO); (13)128-pin PQFP package (14mm x 20mm); (14)WOL support.
