Product Summary

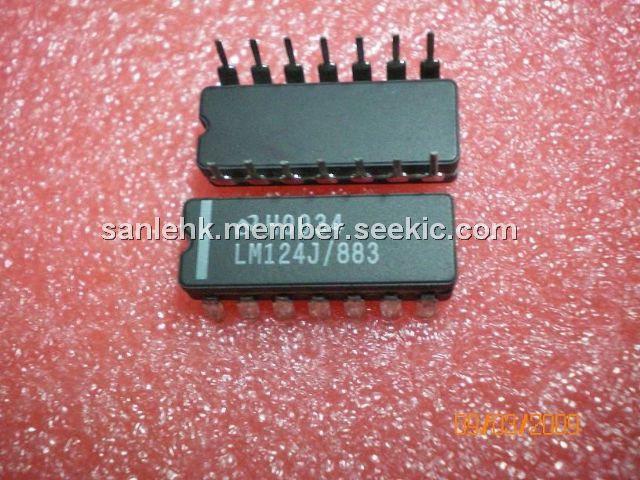

The LM124J/883 is a Low Power Quad Operational Amplifier. The LM124J/883 is designed specifically to operate from a single power supply over a wide range of voltages.
Parametrics
LM124J/883 absolute maximum ratings: (1)Power Dissipation:Molded DIP:1130mW,Cavity DIP:1260mW, Small Outline Package:800mW ; (2)Operating Temperature Range:-55℃ to +125℃; (3)Storage Temperature Range:-65℃ to +150℃; (4)Supply Voltage, V+:32V ; (5)Differential Input Voltage:32V ; (6)Input Voltage:-0.3V to +32V; (7)Input Current(VIN < -0.3V):50mA.
Features
LM124J/883 features: (1)Internally frequency compensated for unity gain; (2)Large DC voltage gain 100 dB; (3)Wide bandwidth (unity gain):1 MHz(temperature compensated); (4)Wide power supply range: Single supply 3V to 32V or dual supplies ±1.5V to ±16V; (5)Very low supply current drain (700 μA)—essentially independent of supply voltage; (6)Low input biasing current:45 nA(temperature compensated); (7)Low input offset voltage:2 mV; (8)and offset current: 5 nA; (9)Input common-mode voltage range includes ground; (10)Differential input voltage range equal to the power supply voltage; (11)Large output voltage swing 0V to V+ - 1.5V.

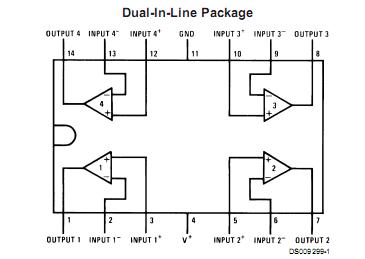

Diagrams
 |
